干冰去毛刺机

PRODUCTS CENTER
干冰去毛刺机
产品简介:

机加工非金属产品,如:peek、pom、尼龙、电木、pp、玻纤板等工程塑料类材料;注塑成型的塑料制品:在脱模后,表面会存在毛刺和飞边,影响产品的外观和装配性能。干冰机可以对工件进行快速、高效的去毛刺处理,使产品表面光滑、无瑕疵;橡胶制品披锋毛边去除;喷油前除尘、 家电行业发泡溢胶清洗,3C行业纳米注塑手机中框/...

产品型号:HQ-2

更新时间:2025-07-04 08:20

厂商性质:生产厂家

访 问 量 :26

服务热线

185 7062 7934

立即咨询
产品介绍

机加工非金属产品,如:peek、pom、尼龙、电木、pp、玻纤板等工程塑料类材料;注塑成型的塑料制品:在脱模后,表面会存在毛刺和飞边,影响产品的外观和装配性能。干冰机可以对工件进行快速、高效的去毛刺处理,使产品表面光滑、无瑕疵;橡胶制品披锋毛边去除;喷油前除尘、 家电行业发泡溢胶清洗,3C行业纳米注塑手机中框/电脑/手表壳去毛刺等。

Integrity:non-metallic products, such as PEEK, PMMA, nylon, bakelite, PP, glass fibre plate and other engineering plastics materials; injection moulding of plastic products: after demoulding, the surface will have burrs and flying edges, affecting the appearance of the product and how well it can be put together. The dry ice machine can quickly and efficiently remove these burrs, making the surface of the product smooth and flawless. It can also remove the dust before oil spraying, clean the foam overflowing rubber in the home applianceindustry, and deburr the nano-injection moulded mobile phone frames/computers/watch cases in the 3C industry.

干冰去毛刺原理/Dry Ice Deburring Principle

1.干冰颗粒喷射:通过喷嘴将压缩空气或气体推动干冰颗粒,使其以高速冲击到毛刺表面。

2.物理冲击和升华:干冰颗粒与毛刺表面接触时,由于温度差异极大(干冰温度可低至-78.5℃),干冰迅速从固态升华为气态二氧化碳。这个升华过程伴随着体积的急剧膨胀,大约膨胀800倍左右,产生高压气体。这种瞬间的膨胀会产生一种微小的爆炸效应,给毛刺带来强大的冲击力。

3.毛刺去除:高压气体冲击力和升华作用共同作用于毛刺,使毛刺与底材之间的结合变弱甚至断裂。随着干冰颗粒的不断冲击和升华,毛刺逐渐被去除并脱离工件表面。

总的来说,干冰去毛刺的原理是利用干冰的低温性能和升华特性,通过高速喷射干冰颗粒到工件表面,利用干冰的升华产生的微爆炸效应和高压气体冲击力来去除毛刺。

1. Dry Ice Pellet Blasting: Compressed air or gas is pushed through a nozzle to hit the dry ice pellets at high speeds onto the surface of the burr.

2. Physical Impact and Sublimation: When the dry ice pellets touch the surface of the burr, the dry ice is changed from a solid to a gas (called carbon dioxide) very quickly because of the extreme difference in temperature (the temperature of the dry ice can be as low as -78.5°C). This change is accompanied by a dramatic expansion in volume, approximately 800 times, producing a high pressure gas.This sudden expansion produces a tiny explosion effect, giving the burr a powerful impact.

3. Burr removal: The high-pressure gas impact and sublimation work together on the burr, making the bond between the burr and the substrate weaker or even broken. The burr is removed by the continuous impact and sublimation of dry ice particles, which detach the burr from the surface of the workpiece. The process uses dry ice's low temperature and the fact that it turns directly into a gas when it hits a surface. It also uses a high-speed spray of dry ice particles and the fact that it turns directly into a gas when it hits a surface.

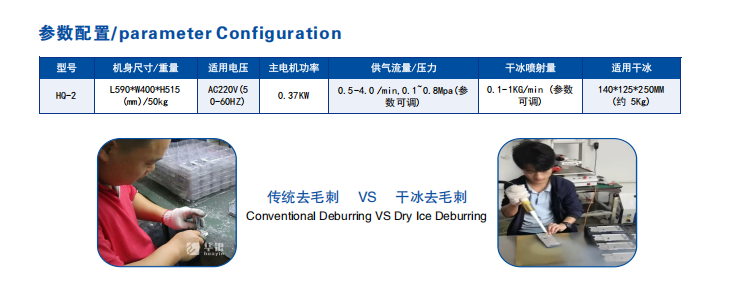

参数配置/parameter Configuration

人工去毛刺:传统刀片削毛刺人工投入成本高,处理速度慢,容易刮伤工件影响尺寸,不适合高精 度去毛刺产品,难以处理复杂结构产品(如交叉孔、几毫米的微孔等) Manual deburring: the traditional blade chipping burr manual input cost is high, processing speed is slow,  easy to scratch the workpiece affects the size, is not suitable for high-precision deburring products, difficult to  deal with the complex structure of the product (such as cross-hole, a few millimeters of micro-hole, etc.)

干冰去毛刺:使用干冰颗粒在高压气流中加速冲击工件表面,不会直接接触工件,不会对工件造成 划伤或磨损,不影响尺寸,环保高效无残留,操作简单易上手,客户亲测一台设备可直接节省10个人工 Dry ice deburring uses dry ice particles in high-pressure airflow to quickly remove unwanted material from  a workpiece. This method does not involve direct contact with the workpiece, so it won't cause scratches or  damage. It's an eco-friendly, efficient, and non-residual process that's simple and easy to use. Customers can  test the device themselves and save up to 10 hours of labor
